6	Amateurfunkanwendungen unterschiedlicher Art Miscellaneous Amateur Radio Applications

---

6.5	Mischstufen Mixer Stages and Frequency Converters
6.5.1	Diodenmischer Diode Converters

f = 640 ... 1280 MHz
		Rate	F	@f	fIF	Io	FIF		@TA	Ref *?
			dB	MHz	MHz	mA	dB		°C
1N5390  FH1100		MAX	10	890	-	-	-		25	Fsc78
BA480		MAX	9.0	900	35	2.0	1.5		25	Val87
BA481		MAX	8.0	900	35	2.0	1.5		25	Val87
		Rate	F	@f	fIF	Io	FIF		@TA	15918
			dB	MHz	MHz	mA	dB		°C

	AAY34
@TA: Rate f: ZIF: s: Gc: F: @FIF: @f: @UF: @Io: Tn/To: @fIF:	25 MIN TYP MAX 26 500 - - - 750 1.4 –5.5 40 1000 1.8 - - - - 140 - 8.5 1.5 34.86 150 0.5 10.5 - - 160 - - - 1.6 45 - -	°C   GHz OHM   dB dB dB GHz mV mA   MHz
Ref *?	Val69	15522

	AAY39
@TA: Rate f: ZIF: Gc:   s: F:   @FIF: @f: @Io: @RL: Tn/To:   @fIF:	25 MIN TYP MAX 1.0 250 - - - - –4.2 –5.0 18 450 - - - - - - - - - - 6.0 7.0 1.5 9.375 1.0 15 1.43 6.5 7.5 - - - - - - - 1.1 1.2 45 - - -	°C   GHz OHM dB dB [A]   dB dB [A] dB GHz mA OHM   [A] MHz
Ref *?	Val70	15522

	D405	D405A	D405B
@TA: Rate f: s: Gc: IF: Rate ZIF:	25 TYP 10 2.0 –7.0 1.0 MIN MAX 250 450	25 TYP 10 1.7 –6.5 1.0 MIN MAX 300 500	25 TYP 10 1.7 –6.0 1.0 MIN MAX 300 450	°C   GHz   dB mA   OHM
Ref *?	Rfe76			15522

6.5.2

Transistormischer Transistor Converters

	AF135 OC615M
@TA: Rate GPb: fLO: @Ub: @fRF: @fIF: @Ic: @UEE: @RG: @RL: Rate R1: R2: R3: C1: C2: C3: C4: C5: C6: C7: C8: C9: C10: C11: L1: L2: L3: L4: L5:	25 MIN TYP MAX 7.0 9.0 - - 4.0 - - 250 6.0 100 10.7 0.9 6.0 60 60 NOM 5.0 40 500 30 2.7 5.0 300 1000 30 3.3 40 5.0 500 700 50 50 80 4.4 8.5	°C   dB kHz V MHz MHz mA V OHM OHM   kOHM kOHM OHM pF pF pF pF pF pF pF pF pF pF pF nH nH nH µH µH
Ref *?	Tfk62 Tfk66 Tfk70	15537

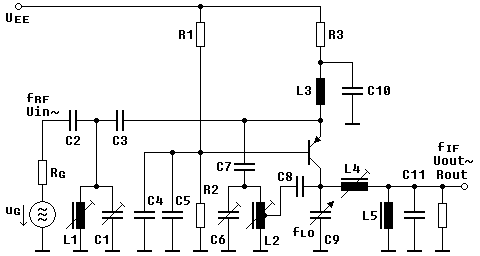

Messschaltung: Selbstschwingende Mischstufe in Basisschaltung   Test Circuit: Common-Base Self-Excited Mixer
